Sale

Original price was: $145.00.Current price is: $130.00.

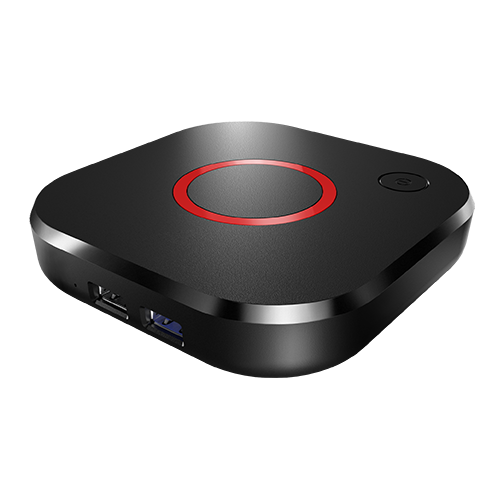

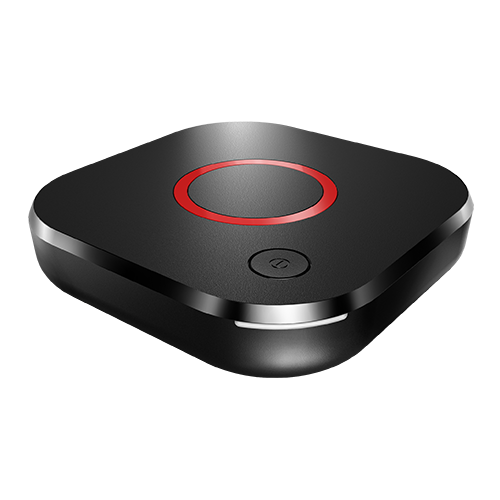

MAG424/424w3 is a cost-effective UHD IPTV/OTT solution intended for medium to large sized operators and telecommunication service providers. The set-top box performed in small form-factor. It has 1 GB operative and 8 GB flash memory, which is good enough to playback and store the high-quality video.

MAG424/424w3 plays the HEVC-compressed files. It means the network load will be lower, even when delivering 4K content. The device runs on Linux OS and fully meets the most stringent requirements of the IPTV/OTT market.

4K and HEVC support, Linux OS, USB x 2 pc. (3.0, 2.0), 1 GB RAM, 8 GB eMMC, HDMI output, Built-in Wi-Fi and Bluetooth 4.2 (only for MAG424w3)

SKU: PO-SD-MG424 Categories: ,

Description

MAG424/424w3 is a cost-effective UHD IPTV/OTT solution intended for medium to large sized operators and telecommunication service providers. The set-top box performed in small form-factor. It has 1 GB operative and 8 GB flash memory, which is good enough to playback and store the high-quality video.

MAG424/424w3 plays the HEVC-compressed files. It means the network load will be lower, even when delivering 4K content. The device runs on Linux OS and fully meets the most stringent requirements of the IPTV/OTT market.

4K and HEVC support, Linux OS, USB x 2 pc. (3.0, 2.0), 1 GB RAM, 8 GB eMMC, HDMI output, Built-in Wi-Fi and Bluetooth 4.2 (only for MAG424w3)



Useful Features
Easy to connect

A built-in Wi-Fi module (for MAG424w3), USB 3.0 and Bluetooth 4.2 support (for MAG424w3) allow connecting any external drive for extra storage space or a keyboard and mouse for comfortably using the set-top box.

High performance

Modern high-performance processor on the HiSilicon chipset Hi3798MV200 and 1 GB RAM is good enough to playback 4K video.

Ergonomic design

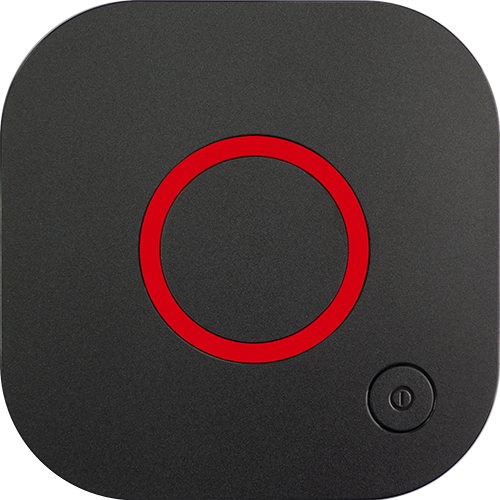

The set-top box and remote control are presented in the new Micro Fusion design. They will look good in any interior.

4K and HEVC support

With HEVC, 4K video can be efficiently transmitted throw modern fiber-optics networks. MAG424 is a great example of high-quality HEVC support by both the hardware and software of the device

Dimensions
Width/depth/height, (mm) 115x115x28
Weight, g 180
Hardware
Chipset Hi3798MV200
Processor ARM Cortex-A53 Quad Core CPU 1200 MHz
Performance 15 000 DMIPS
RAM 1 GB
Flash memory 8 GB eMMC
Software
Operating system Linux 4.4.35
Middleware supported Ministra TV platform version 5.4.0 or higher
Interfaces

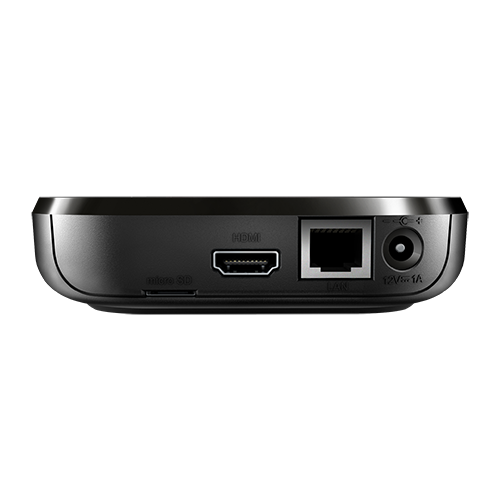

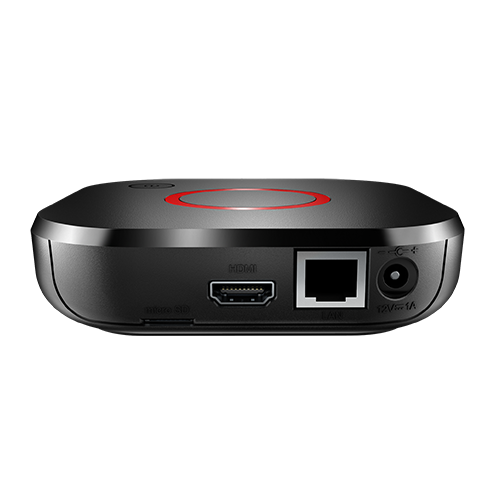

HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0×1, Bluetooth 4.2, MicroSD, Built-in Wi-Fi ac 2×2
Sources of media content
PC and NAS in a local network, Stream media protocols (RTSP, RTP, UDP, HTTP), Zixi protocol (optional), USB devices
Audio & video
Audio сodecs MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus
Audio formats MP3, MPA, M4A, OGG, WAV, AAC
Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video сodecs H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support
Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed caption
Playlist formats M3U, M3U8, PLS, CUE
Standard set

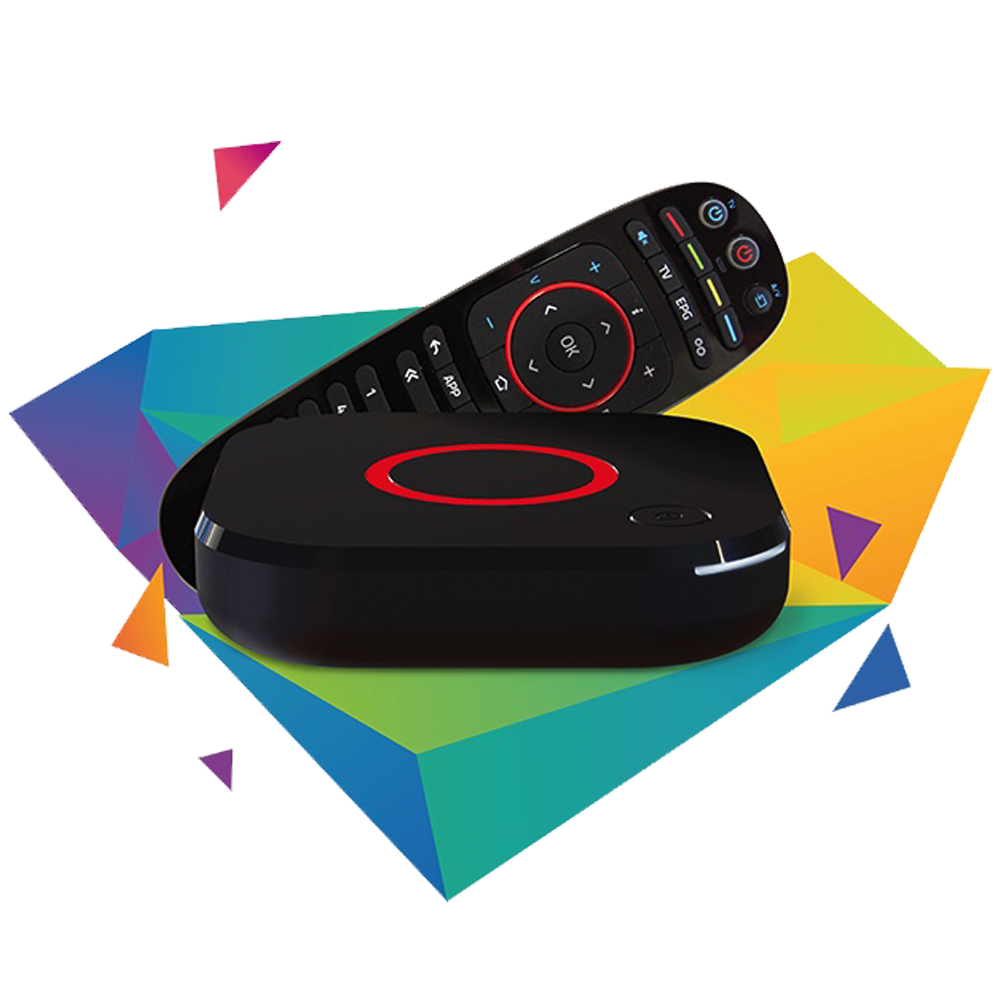

MAG424w3 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
